The"Mündener Hornet-Box"
(building guidance)

The "Mündener hornet box" could successfully be used when settlement and requartering of hornet peoples.

Building material:

• boards from spruce-fir or Weymouth-pine, 20mm thickly
• cardboard for the roof cover
• nails and screws
• hinges and storm-hooks as catch mechanism for the door
• thin aluminum or zinc sheet lining
  (the test flight openings outside all around as woodpecker protection with sheet metal fitted)

Flight slot (version A, like in the below-mentioned sketch)

• The flight slot is trained as a 12 cm of long and 1.5 cm broad slot

2 flight holes (version B)

• also two superimposed drillings with a diameter of 20 mm is very appropriate. The upper flight hole is 12cm of the cover, which lower 18cm is attached by the base.

Box base:

• The base is bent downward and points in the vertex a continuous 1,5-2,0cm broad slot to (resulted from the overlap of the base boards)

Box interior:

• Under the roof is a border a (1 cm x 1 cm); at both pages the borders b, c and d (2cm x 2cm) are horizontally attached.

• IMPORTANT NOTE: The size/dimensions/measurements are the minimum! In order to obtain an optimal interior of 65 x 25 x 25cm, the boards should be sawed as specified below:
  1 roof, 35 x 35cm;
  1 bar over the door, 29 x 5cm;
  2 side panels, in each case 65 x 25cm;
  1 rear wall, 65 x 29cm;
  1 door, 60 x 29 cm;
  1 front floor part, 25 x 20cm;
  1 rear floor part, 25 x 10cm;
  (cut to form both floor parts at a longitudinal fold with 20° angle cut)

Hornet box suspension:

• At the box rear wall are two stronger stop bars with drillings, by which the box can be fastened with aluminum nails or binding wire.

• The hornet boxes can be attached at edges of clearing, forest seams, in gardens or also at buildings.

• The suspension height should amount to about four meters

• If possible, the flight hole of the box should be placed facing east "to catch the morning sun."

• The air space before the box must be free by branches, in order to ensure an open approach.

Cleaning of the hornet box:

Before the new season, approximately by 1 May, the old nest must be removed, since it blocks otherwise the NIST space. In order to enable to other wintering specialized animals an unimpaired winter peace or development, the cleaning of the hornet box should not be therefore before the end of of April

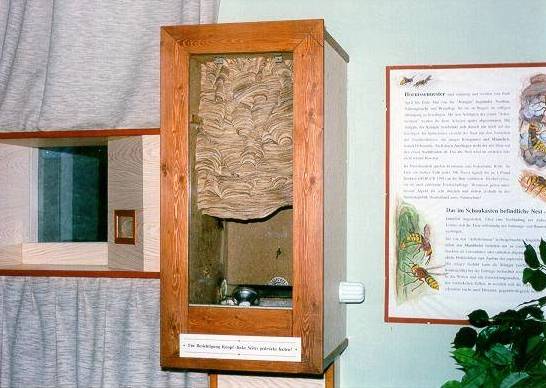

"Professional Hornet Box"
